PI6C106 - Pentium/Pro System Clock Chip

Description

The PI6C106 is part of a reduced pin count two-chip clock solution for designs using an Intel BX style chipset.

Companion SDRAM buffers are PI6C182 & PI6C184.

There are two PLLs, with the first PLL capable of spread spectum operation.

Features

  • Three CPUs @2.5V, up to 100 MHz.
  • Seven PCIs @ 3.3V (including one free running, 1 early).
  • One 48 MHz @ 3.3V fixed.
  • One REF (3.3V, 14.318 MHz).
  • One IOAPIC (2.5V, 14.318 MHz).
  • Strong REF clock (1V/ns @50pF load).
  • Excellent power management features including Power Down, PCI, and CPU stops.
  • Spread Spectrum for EMI control (0.5% down spread).
  • Early PCI (2.5ns ±700ps).
  • Enhanced PCICLK4 (1.5X).
  • 28-pin S.

📥 Download Datasheet

Datasheet Details

Part number PI6C106
Manufacturer Pericom Semiconductor Corporation
File Size 370.98 KB
Description Pentium/Pro System Clock Chip
Datasheet download datasheet PI6C106 Datasheet

📁 Similar Datasheet

  • PI6C105 - Precision Clock Synthesizer (Pericom Semiconductor)
  • PI6C10804 - 1:4 Networking Clock Buffer (Pericom Semiconductor)
  • PI6C10806 - Low Skew 1:6 Crystal to LVCMOS Clock Buffer (Pericom Semiconductor)
  • PI6C185-00 - Precision 1-7 Clock Buffer (Pericom Semiconductor)
  • PI6C185-01 - Precision 1-5 Clock Buffer (Pericom Semiconductor)
  • PI6C185-01B - Precision 1-5 Clock Buffer (Pericom Semiconductor)
  • PI6C185-02B - Precision 1-7 Clock Buffer (Pericom Semiconductor)
  • PI6C2401 - Phase-Locked Loop Clock Driver (Pericom Semiconductor)
  • PI6C2404A-1 - Zero-Delay Clock Buffer (Pericom Semiconductor)
  • PI6C2501 - Phase-Locked Loop Clock Driver (Pericom Semiconductor)
Other Datasheets by Pericom Semiconductor Corporation
  • PI6C103 - Precision Clock Synthesizer
  • PI6C18551 - 3.3V/5V 1 to 4 Clock Buffer
  • PI6C2405A - Zero-Delay Clock Buffer
  • PI6C2408 - 3.3V 4+4 Ouptut Zero-delay Clock Driver
  • PI6C2409 - Zero-Delay Clock Buffer
  • PI6C2502 - Phase-Locked Loop Clock Driver
  • PI6C2502A - Phase-Locked Loop Clock Driver
  • PI6C2510-133 - Low-Noise/ Phase-Locked Loop Clock Driver with 10 Clock Outputs

Full PDF Text Transcription

Click to expand full text

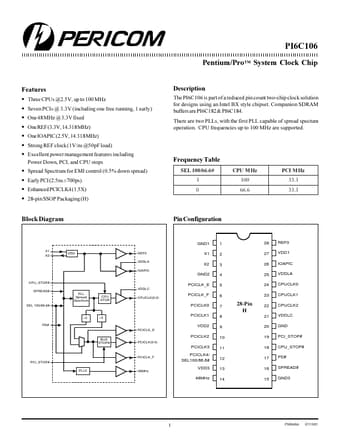

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 PI6C106 Pentium/ProTM System Clock Chip Features • Three CPUs @2.5V, up to 100 MHz • Seven PCIs @ 3.3V (including one free running, 1 early) • One 48 MHz @ 3.3V fixed • One REF (3.3V, 14.318 MHz) • One IOAPIC (2.5V, 14.
