PI3HDX511F - HDMI 1.4b 3.4Gbps ReDriver Jitter Cleaner

📥 Download Datasheet

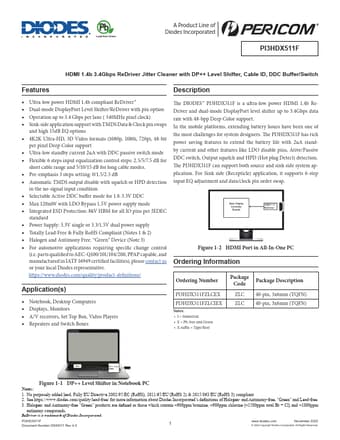

Preview of PI3HDX511F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number PI3HDX511F
Manufacturer DIODES
File Size 6.37 MB
Description HDMI 1.4b 3.4Gbps ReDriver Jitter Cleaner
Datasheet download datasheet PI3HDX511F-DIODES.pdf

PI3HDX511F Product details

Description

y Ultra-low power HDMI 1.4b compliant ReDriver™ y Dual-mode DisplayPort Level Shifter/ReDriver with pin option y Operation up to 3.4 Gbps per lane ( 340MHz pixel clock) y Sink-side application support with TMDS Data & Clock pin swaps and high 15dB EQ options y 4K2K Ultra-HD, 3D Video formats (1080p, 1080i, 720p), 48-bit per pixel Deep Color support y Ultra-low standby current 2uA with DDC passive switch mode y Flexible 6 steps input equalization control steps: 2.5/5/7.5 dB for short cable range
