DMN3013LFG - 30V SYNCHRONOUS N-CHANNEL ENHANCEMENT MODE MOSFET

DIODES

📥 Download Datasheet

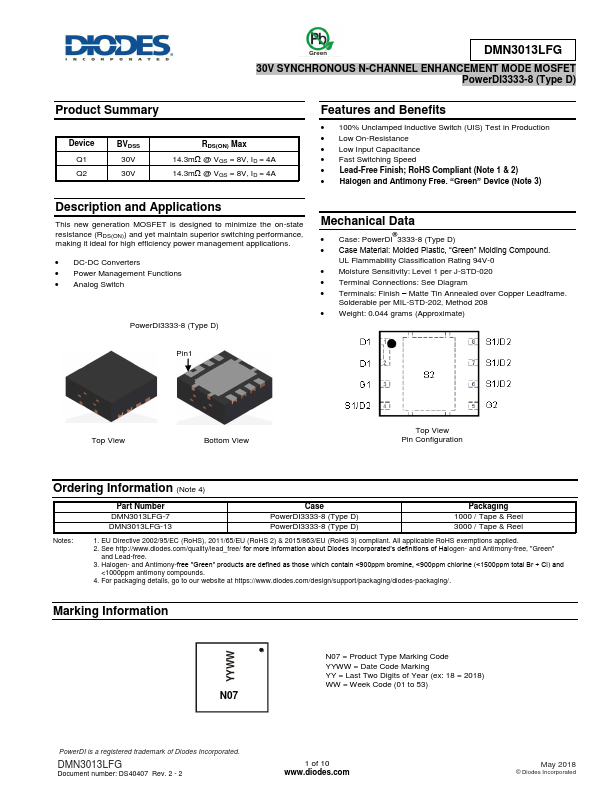

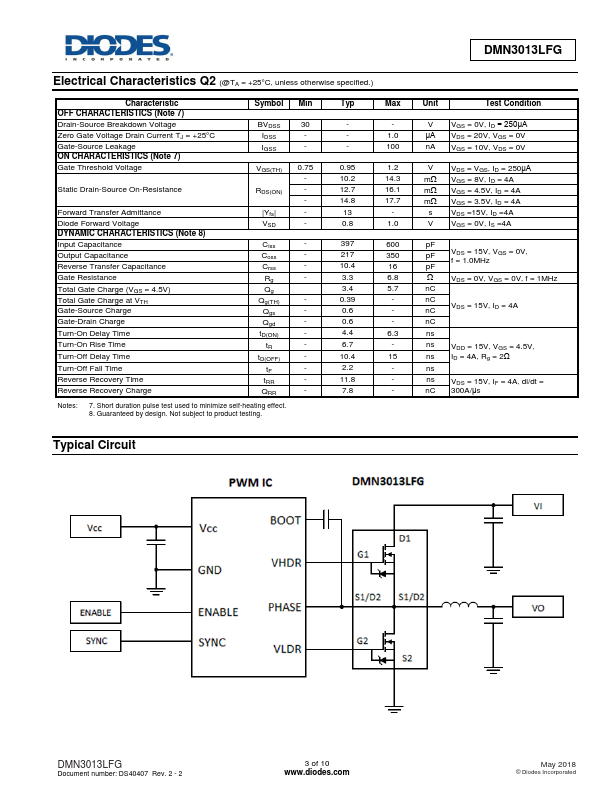

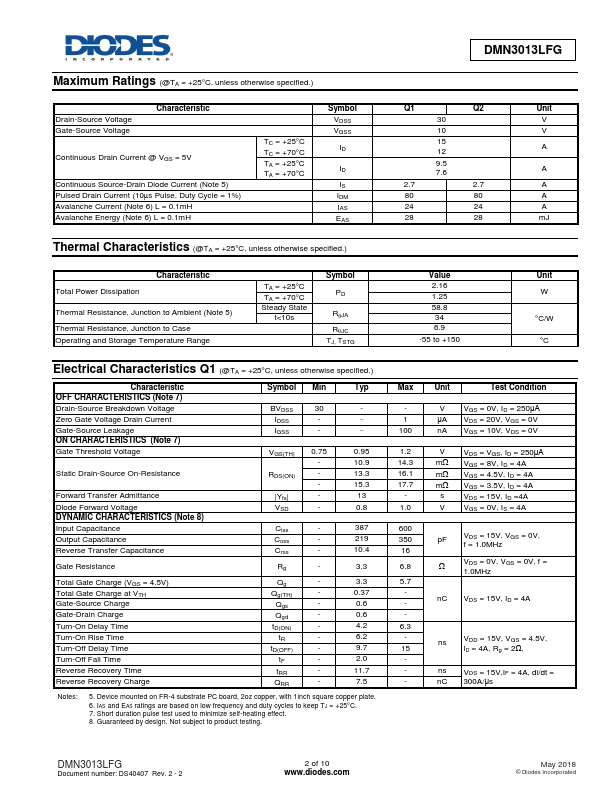

DMN3013LFG Datasheet Preview — Preview of DMN3013LFG PDF

Datasheet Details

Part number	DMN3013LFG
Manufacturer	DIODES
File Size	541.49 KB
Description	30V SYNCHRONOUS N-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet	DMN3013LFG-DIODES.pdf

DMN3013LFG Product details

Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. DC-DC Converters Power Management Functions Analog Switch PowerDI3333-8 (Type D) Mechanical Data Case: PowerDI®3333-8 (Type D) Case Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitiv

Features

100% Unclamped Inductive Switch (UIS) Test in Production.
Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Lead-Free Finish; RoHS Compliant (Note 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
