DMN3012LFG - 30V N-CHANNEL MOSFET

DIODES

📥 Download Datasheet

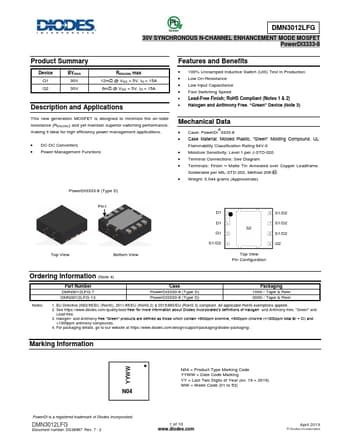

DMN3012LFG Datasheet Preview — Preview of DMN3012LFG PDF

Datasheet Details

Part number	DMN3012LFG
Manufacturer	DIODES
File Size	523.06 KB
Description	30V N-CHANNEL MOSFET
Datasheet	DMN3012LFG-DIODES.pdf

DMN3012LFG Product details

Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. DC-DC Converters Power Management Functions PowerDI3333-8 (Type D)

Features

100% Unclamped Inductive Switch (UIS) Test in Production.
Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: PowerDI®3333-8.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminal Connections: See Diagram.
Te.
