DMN3009LFVW - 30V N-CHANNEL MOSFET

DIODES

📥 Download Datasheet

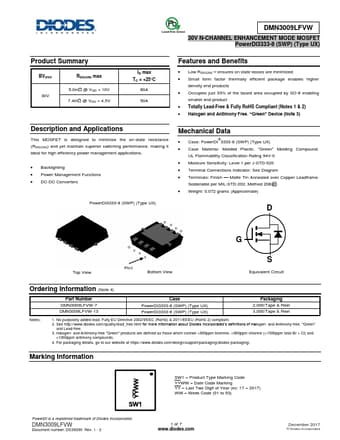

DMN3009LFVW Datasheet Preview — Preview of DMN3009LFVW PDF

Datasheet Details

Part number	DMN3009LFVW
Manufacturer	DIODES
File Size	544.18 KB
Description	30V N-CHANNEL MOSFET
Datasheet	DMN3009LFVW-DIODES.pdf

DMN3009LFVW Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting Power Management Functions DC-DC Converters PowerDI3333-8 (SWP) (Type UX) Mechanical Data Case: PowerDI®3333-8 (SWP) (Type UX) Case Material: Molded Plastic, "Green" Molding Compound. Moisture Sensitivit

Features

Low RDS(ON).
ensures on state losses are minimized.
Small form factor thermally efficient package enables higher density end products.
Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
