DMN24H11DSQ - N-CHANNEL MOSFET

DIODES

The DMN24H11DSQ by DIODES is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

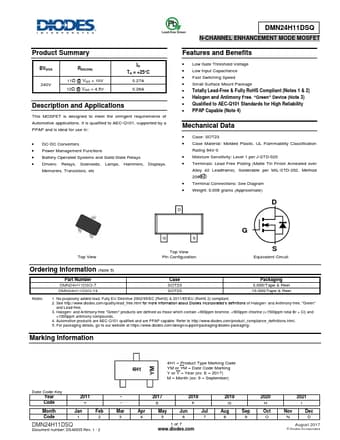

DMN24H11DSQ N-CHANNEL MOSFET by DIODES - Datasheet Preview — Official preview page of the **DMN24H11DSQ** N-CHANNEL MOSFET datasheet (DIODES).

Datasheet Details

Part number	DMN24H11DSQ
Manufacturer	DIODES
File Size	615.22 KB
Description	N-CHANNEL MOSFET
Datasheet	DMN24H11DSQ-DIODES.pdf
Additional preview pages of the DMN24H11DSQ datasheet.

DMN24H11DSQ Product details

Description

and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications.It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: DC-DC Converters Power Management Functions Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc DMN24H11DSQ N-CHANNEL ENHANCEMENT MODE MOSFET

Features

Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Small Surface Mount Package.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Te.
