DMN2022UCA4 - N-CHANNEL ENHANCEMENT MODE MOSFET

DIODES

📥 Download Datasheet

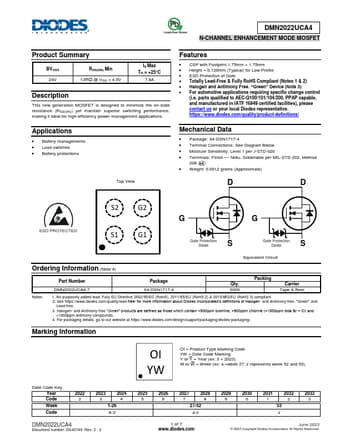

DMN2022UCA4 Datasheet Preview — Preview of DMN2022UCA4 PDF

Datasheet Details

Part number	DMN2022UCA4
Manufacturer	DIODES
File Size	671.15 KB
Description	N-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet	DMN2022UCA4-DIODES.pdf

DMN2022UCA4 Product details

Description

This new generation MOSFET is designed to minimize the on-state resistance (RSS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Battery managements Load switches Battery protections Top View

Features

CSP with Footprint 1.75mm × 1.75mm.
Height = 0.120mm (Typical) for Low Profile.
ESD Protection of Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
