DMN2400UFDQ - N-CHANNEL MOSFET

Diodes

The DMN2400UFDQ by Diodes is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMN2400UFDQ N-CHANNEL MOSFET by Diodes - Datasheet Preview — Official preview page of the **DMN2400UFDQ** N-CHANNEL MOSFET datasheet (Diodes).

Datasheet Details

Part number	DMN2400UFDQ
Manufacturer	DIODES
File Size	380.70 KB
Description	N-CHANNEL MOSFET
Datasheet	DMN2400UFDQ-Diodes.pdf

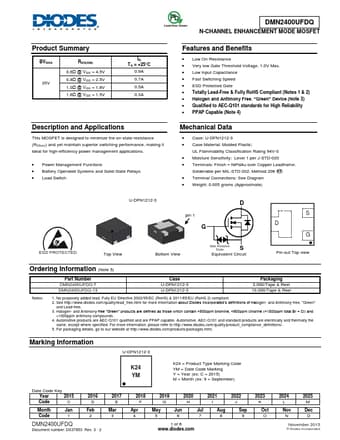

Additional preview pages of the DMN2400UFDQ datasheet.

DMN2400UFDQ Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Power Management Functions Battery Operated Systems and Solid-State Relays Load Switch

Features

Low On-Resistance.
Very low Gate Threshold Voltage, 1.0V Max.
Low Input Capacitance.
Fast Switching Speed.
ESD Protected Gate.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: U-DFN1212-3.
Case Material: Molded Plastic; UL Flammabilit.
