DMN2053UFDBQ - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

DIODES

📥 Download Datasheet

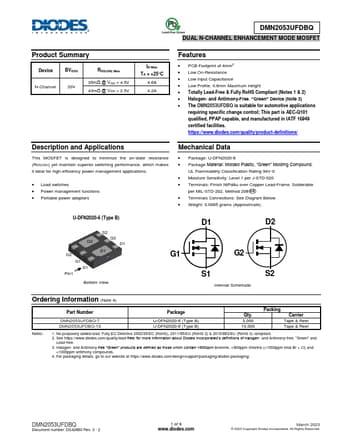

DMN2053UFDBQ Datasheet Preview — Preview of DMN2053UFDBQ PDF

Datasheet Details

Part number	DMN2053UFDBQ
Manufacturer	DIODES
File Size	518.46 KB
Description	DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet	DMN2053UFDBQ-DIODES.pdf

DMN2053UFDBQ Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power management applications. Load switches Power management functions Portable power adaptors Mechanical Data Package: U-DFN2020-6 Package Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level 1 per J-STD-020 Ter

Features

PCB Footprint of 4mm2.
Low On-Resistance.
Low Input Capacitance.
Low Profile, 0.6mm Maximum Height.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen- and Antimony-Free. “Green” Device (Note 3).
The DMN2053UFDBQ is suitable for automotive.
