DMN2053UFDB - DUAL N-CHANNEL MOSFET

DIODES

📥 Download Datasheet

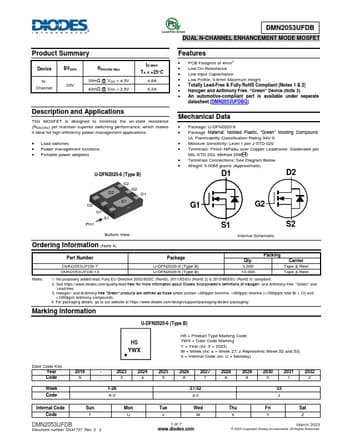

DMN2053UFDB Datasheet Preview — Preview of DMN2053UFDB PDF

Datasheet Details

Part number	DMN2053UFDB
Manufacturer	DIODES
File Size	517.58 KB
Description	DUAL N-CHANNEL MOSFET
Datasheet	DMN2053UFDB-DIODES.pdf

DMN2053UFDB Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power management applications. Load switches Power management functions Portable power adaptors U-DFN2020-6 (Type B) Mechanical Data Package: U-DFN2020-6 Package Material: Molded Plastic, “Green” Molding Compound. Moisture Sensitivity: Level

Features

Device NChannel BVDSS 20V RDS(ON) Max 35mΩ @ VGS = 4.5V 43mΩ @ VGS = 2.5V ID MAX TA = +25°C 4.6A 4.2A.
PCB Footprint of 4mm2.
Low On-Resistance.
Low Input Capacitance.
Low Profile, 0.6mm Maximum Height.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
An automotive-compliant part is available under separate datasheet (DMN2053UFDBQ).
