DMN2050L - N-CHANNEL MOSFET

Features

  • Low On-Resistance.
  • 29m @VGS = 4.5V.
  • 50m @VGS = 2.5V.
  • 100m @VGS = 2.0V.
  • Very Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability DMN2050L N-.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMN2004DWK DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Diodes Incorporated
DMN2004K N-CHANNEL ENHANCEMENT MODE MOSFET Diodes Incorporated
DMN2004VK DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Diodes Incorporated
DMN2004WK N-Channel MOSFET Diodes Incorporated
DMN2005K N-Channel Transistor Diodes Incorporated

Other Datasheets by Diodes Incorporated

Part Number Description
DMN2050LFDB Dual N-Channel MOSFET
DMN2053UFDB DUAL N-CHANNEL MOSFET
DMN2053UFDBQ DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
DMN2053UQ N-CHANNEL ENHANCEMENT MODE MOSFET
DMN2053UW 20V N-CHANNEL MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

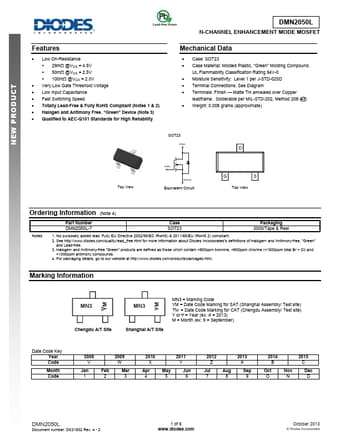

NEW PRODUCT Features  Low On-Resistance  29m @VGS = 4.5V  50m @VGS = 2.5V  100m @VGS = 2.0V  Very Low Gate Threshold Voltage  Low Input Capacitance  Fast Switching Speed  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability DMN2050L N-CHANNEL ENHANCEMENT MODE MOSFET Mechanical Data  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020D  Terminal Connections: See Diagram  Terminals: Finish  Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 e3  Weight: 0.
