20SQ045 - SCHOTTKY BARRIER RECTIFIER

DIODES

The 20SQ045 by DIODES is a SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

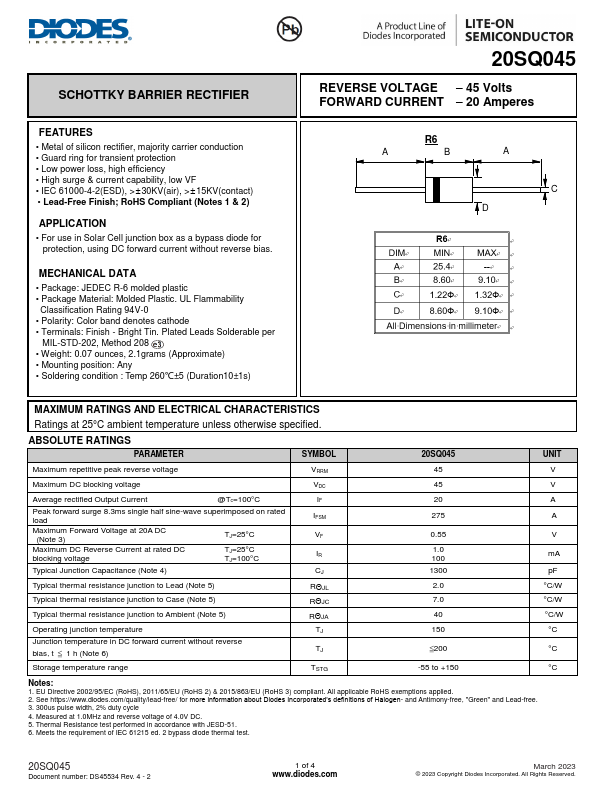

20SQ045 SCHOTTKY BARRIER RECTIFIER by DIODES - Datasheet Preview — Official preview page of the 20SQ045 SCHOTTKY BARRIER RECTIFIER datasheet (DIODES).

Datasheet Details

Part number	20SQ045
Manufacturer	DIODES
File Size	498.12 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	20SQ045-DIODES.pdf

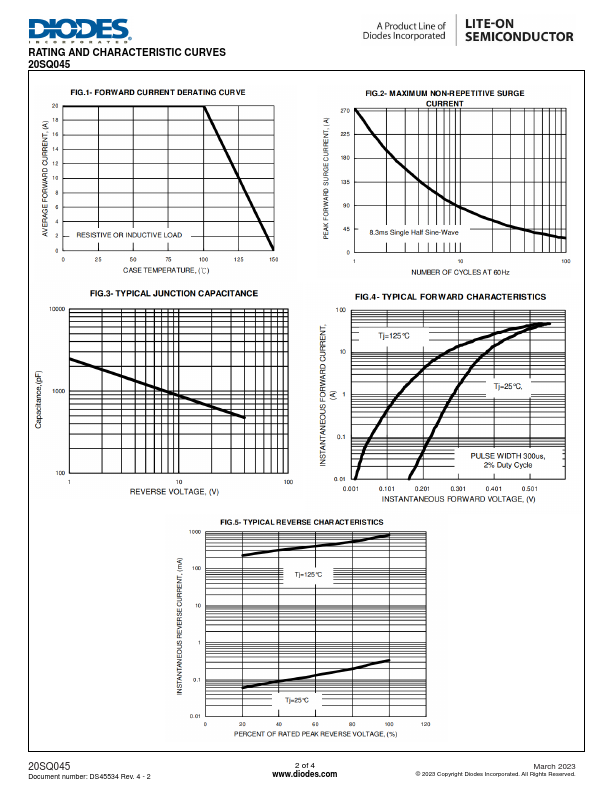

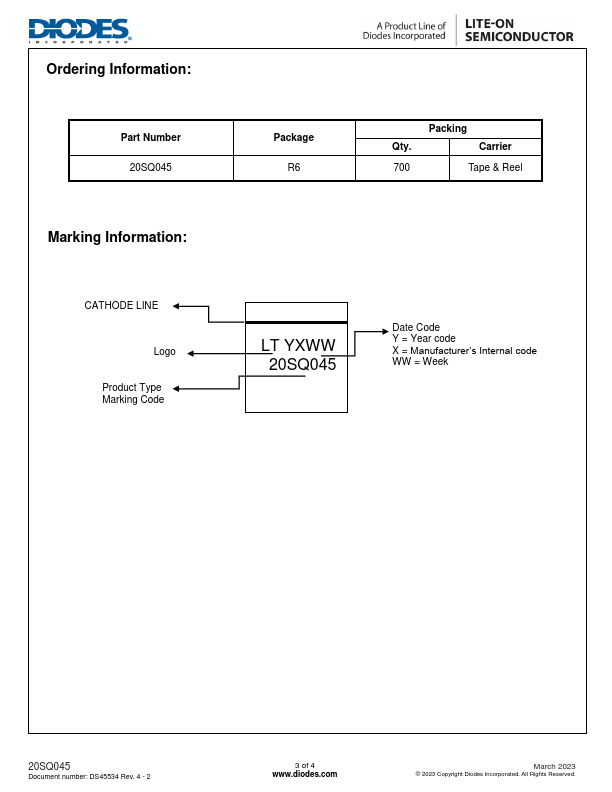

Additional preview pages of the 20SQ045 datasheet.

20SQ045 Product details

Features

Metal of silicon rectifier, majority carrier conduction.
Guard ring for transient protection.
Low power loss, high efficiency.
High surge & current capability, low VF.
IEC 61000-4-2(ESD), >±30KV(air), >±15KV(contact).
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
