W182-5 - Full Feature Peak Reducing EMI Solution

Cypress Semiconductor

📥 Download Datasheet

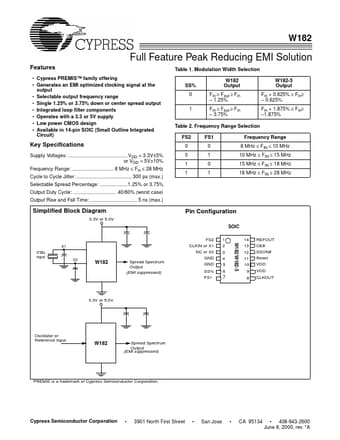

W182-5 Datasheet Preview — Preview of W182-5 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: W182-5
Manufacturer: Cypress Semiconductor
File Size: 124.98 KB
Datasheet: W182-5_CypressSemiconductor.pdf
Description: Full Feature Peak Reducing EMI Solution

W182-5 Product details

Description

Output Modulated Frequency: Frequency modulated copy of the input clock (SSON# asserted).

Features

Cypress PREMIS™ family offering.
Generates an EMI optimized clocking signal at the output.
Selectable output frequency range.
Single 1.25% or 3.75% down or center spread output.
Integrated loop filter components.
Operates with a 3.3 or 5V supply.
Low power CMOS design.
Available in 14-pin SOIC (Small Outline Integrated Circuit) Table 1. Modulation Width Selection SS% 0 1 W182 Output Fin ≥ Fout ≥ Fin.
1.25% Fin ≥ Fo.
