W181 - Peak Reducing EMI Solution

Cypress Semiconductor

📥 Download Datasheet

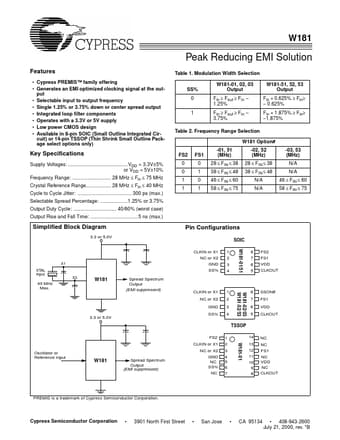

W181 Datasheet Preview — Preview of W181 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: W181
Manufacturer: Cypress Semiconductor
File Size: 162.88 KB
Datasheet: W181_CypressSemiconductor.pdf
Description: Peak Reducing EMI Solution

W181 Product details

Description

Output Modulated Frequency: Frequency modulated copy of the unmodulated input clock (SSON# asserted).

Features

Cypress PREMIS™ family offering.
Generates an EMI optimized clocking signal at the output.
Selectable input to output frequency.
Single 1.25% or 3.75% down or center spread output.
Integrated loop filter components.
Operates with a 3.3V or 5V supply.
Low power CMOS design.
Available in 8-pin SOIC (Small Outline Integrated Circuit) or 14-pin TSSOP (Thin Shrink Small Outline Package select options only) Table 1. Modulation Wi.
