W180 - Peak Reducing EMI Solution

Description

Output Modulated Frequency: Frequency modulated copy of the unmodulated input clock (SSON# asserted).

Crystal Connection or External Reference Frequency Input: This pin has dual functions.

It may either be connected to an external crystal, or to an external reference clock.

Features

  • Cypress PREMIS™ family offering.
  • Generates an EMI optimized clocking signal at the output.
  • Selectable output frequency range.
  • Single 1.25% or 3.75% down or center spread output.
  • Integrated loop filter components.
  • Operates with a 3.3V or 5V supply.
  • Low power CMOS design.
  • Available in 8-pin SOIC (Small Outline Integrated Circuit) Table 1. Modulation Width Selection SS% 0 1 W180-01, 02, 03 Output Fin ≥ Fout ≥ Fin.
  • 1.2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
W1856NC400 Rectifier Diode IXYS
W1856NC420 Rectifier Diode IXYS
W1856NC440 Rectifier Diode IXYS
W1856NC460 Rectifier Diode IXYS
W1856NC480 Rectifier Diode IXYS

Other Datasheets by Cypress (Infineon)

Part Number Description
W181 Peak Reducing EMI Solution
W182 Full Feature Peak Reducing EMI Solution
W182-5 Full Feature Peak Reducing EMI Solution
W183 Full Feature Peak Reducing EMI Solution
W183-5 Full Feature Peak Reducing EMI Solution

Full PDF Text Transcription

Click to expand full text

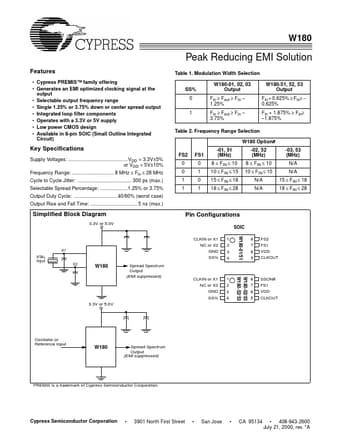

W180 Peak Reducing EMI Solution Features • Cypress PREMIS™ family offering • Generates an EMI optimized clocking signal at the output • Selectable output frequency range • Single 1.25% or 3.75% down or center spread output • Integrated loop filter components • Operates with a 3.3V or 5V supply • Low power CMOS design • Available in 8-pin SOIC (Small Outline Integrated Circuit) Table 1. Modulation Width Selection SS% 0 1 W180-01, 02, 03 Output Fin ≥ Fout ≥ Fin – 1.25% Fin ≥ Fout ≥ Fin – 3.75% W180-51, 52, 53 Output Fin + 0.625% ≥ Fin≥ – 0.625% Fin + 1.875% ≥ Fin≥ –1.875% Table 2.
