CYP15G0401DXA - Quad HOTLink II Transceiver

Product Overview

Cypress Semiconductor

Datasheet Details

Part number	CYP15G0401DXA
Manufacturer	Cypress Semiconductor
File Size	1.09 MB
Description	Quad HOTLink II Transceiver
Datasheet	CYP15G0401DXA Datasheet

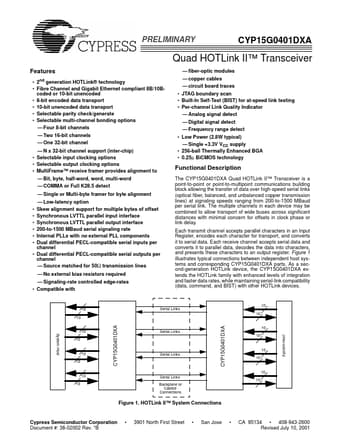

Additional preview pages of the CYP15G0401DXA datasheet.

Product details

Description

The CYP15G0401DXA Quad HOTLink II™ Transceiver is a point-to-point or point-to-multipoint communications building block allowing the transfer of data over high-speed serial links (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 200-to-1500 MBaud per serial link.

Features

2nd generation HOTLink® technology.
Fibre Channel and Gigabit Ethernet compliant 8B/10Bcoded or 10-bit unencoded.
8-bit encoded data transport.
10-bit unencoded data transport.
Selectable parity check/generate.
Selectable multi-channel bonding options.
Four 8-bit channels.
Two 16-bit channels.
One 32-bit channel.
N x 32-bit channel support (inter-chip).
Selectable input clocking options.
