CY7C1511AV18 - 72-Mbit QDR-II SRAM 4-Word Burst Architecture

Cypress Semiconductor

The CY7C1511AV18 by Cypress Semiconductor is a 72-Mbit QDR-II SRAM 4-Word Burst Architecture. Below is the official datasheet preview.

Datasheet Details

Part number	CY7C1511AV18
Manufacturer	Cypress Semiconductor
File Size	756.21 KB
Description	72-Mbit QDR-II SRAM 4-Word Burst Architecture
Datasheet	CY7C1511AV18_CypressSemiconductor.pdf

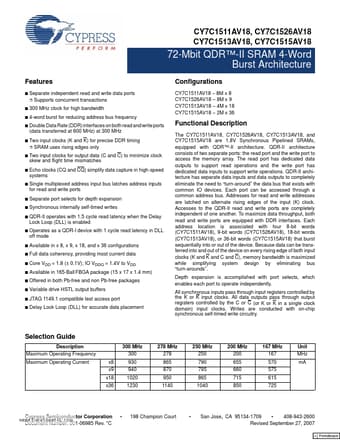

Additional preview pages of the CY7C1511AV18 datasheet.

The CY7C1511AV18, CY7C1526AV18, CY7C1513AV18, and CY7C1515AV18 are 1.8V Synchronous Pipelined SRAMs, equipped with QDR™-II architecture.

Configurations CY7C1511AV18.
8M x 8 CY7C1526AV18.
8M x 9 CY7C1513AV18.
4M x 18 CY7C1515AV18.
2M x 36 Separate independent read and write data ports.
Supports concurrent transactions 300 MHz clock for high bandwidth 4-word burst for reducing address bus frequency Double Data Rate (DDR) interfaces on both read and write ports (data transferred at 600 MHz) at 300 MHz Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
