CY7C1462AV25, CY7C1460AV25 - 36-Mbit (1M x 36/2M x 18/512K x 72) Pipelined SRAM

Cypress Semiconductor

📥 Download Datasheet

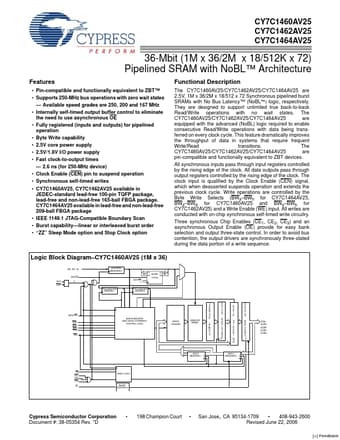

CY7C1462AV25 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C1462AV25, CY7C1460AV25. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY7C1462AV25, CY7C1460AV25
Manufacturer	Cypress Semiconductor
File Size	483.27 KB
Description	36-Mbit (1M x 36/2M x 18/512K x 72) Pipelined SRAM
Datasheet	CY7C1460AV25_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1462AV25, CY7C1460AV25. Please refer to the document for exact specifications by model.

CY7C1462AV25 Product details

Description

The CY7C1460AV25/CY7C1462AV25/CY7C1464AV25 are 2.5V, 1M x 36/2M x 18/512 x 72 Synchronous pipelined burst SRAMs with No Bus Latency™ (NoBL™) logic, respectively.They are designed to support unlimited true back-to-back Read/Write operations with no wait states.The CY7C1460AV25/CY7C1462AV25/CY7C1464AV25 are equipped with the advanced (NoBL) logic required to enable consecutive Read/Write operations with data being trans- ferred on every clock cycle.This feature dramatically improves

Features

Pin-compatible and functionally equivalent to ZBT™.
Supports 250-MHz bus operations with zero wait states.
Available speed grades are 250, 200 and 167 MHz.
Internally self-timed output buffer control to eliminate the need to use asynchronous OE.
Fully registered (inputs and outputs) for pipelined operation.
Byte Write capability.
2.5V core power supply.
2.5V/1.8V I/O power supply.
Fast clock-to-output times.
