CY15B104Q - 4-Mbit (512 K x 8) Serial (SPI) F-RAM

Cypress Semiconductor

The CY15B104Q by Cypress Semiconductor is a 4-Mbit (512 K x 8) Serial (SPI) F-RAM. Below is the official datasheet preview.

Datasheet Details

Part number	CY15B104Q
Manufacturer	Cypress Semiconductor
File Size	829.47 KB
Description	4-Mbit (512 K x 8) Serial (SPI) F-RAM
Datasheet	CY15B104Q-CypressSemiconductor.pdf

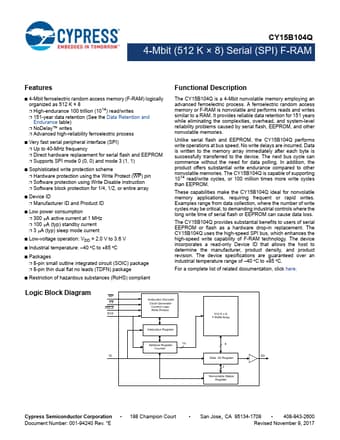

Additional preview pages of the CY15B104Q datasheet.

The CY15B104Q is a 4-Mbit nonvolatile memory employing an advanced ferroelectric process.

4-Mbit ferroelectric random access memory (F-RAM) logically organized as 512 K × 8.
High-endurance 100 trillion (1014) read/writes.
151-year data retention (See the Data Retention and Endurance table).
NoDelay™ writes.
Advanced high-reliability ferroelectric process.
Very fast serial peripheral interface (SPI).
Up to 40-MHz frequency.
Direct hardware replacement for serial flash and EEPROM.
Supports SPI mode 0 (0, 0) and mode 3 (1, 1).
Sophistic.
