CY15B101N - 1-Mbit (64K x 16) Automotive F-RAM Memory

Name: CY15B101N
SKU: CY15B101N-1101515

Cypress Semiconductor

The CY15B101N by Cypress Semiconductor is a 1-Mbit (64K x 16) Automotive F-RAM Memory. Below is the official datasheet preview.

Datasheet Details

Part number	CY15B101N
Manufacturer	Cypress Semiconductor
File Size	386.63 KB
Description	1-Mbit (64K x 16) Automotive F-RAM Memory
Datasheet	CY15B101N-CypressSemiconductor.pdf

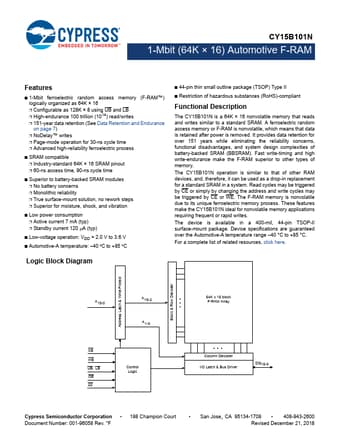

Additional preview pages of the CY15B101N datasheet.

1-Mbit ferroelectric random access memory (F-RAM™) logically organized as 64K × 16.
Configurable as 128K × 8 using UB and LB.
High-endurance 100 trillion (1014) read/writes.
151-year data retention (see the Data Retention and Endurance table).
NoDelay™ writes.
Page-mode operation for 30-ns cycle time.
Advanced high-reliability ferroelectric process.
SRAM compatible.
Industry-standard 64K × 16 SRAM pinout.
60-ns access time, 90-ns cycle time.
