UF3040PT, UF3005PT - Super Fast Recovery Rectifier

Name: UF3040PT
SKU: UF3040PT-766525

CumSumI

The UF3040PT by CumSumI is a Super Fast Recovery Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	UF3040PT, UF3005PT
Manufacturer	CumSumI
File Size	618.83 KB
Description	Super Fast Recovery Rectifier
Datasheet	UF3005PT_CumSumI.pdf
Note	This datasheet PDF includes multiple part numbers: UF3040PT, UF3005PT. Please refer to the document for exact specifications by model.

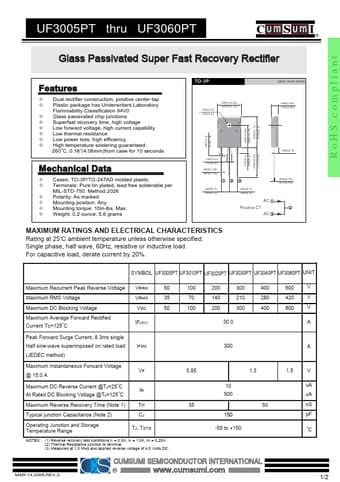

Additional preview pages of the UF3040PT datasheet.

Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classification 94V0 Glass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 260 C, 0.16”(4.06mm)from case for 10 seconds .640(16.25) .620(15.75) .142(3.6) .125(3.2) .199(5.05) .175(4.45) .095(2.4) .126(3.2) .110(2.8) .050(1.25) .045(1.15).
