UF3002-G - Ultra Fast Recovery Rectifiers

Download the UF3002-G datasheet PDF. This datasheet also covers the UF3001-G variant, as both devices belong to the same ultra fast recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • -Low cost construction. -Ultra fast switching for high efficiency. -Low reverse leakage current. -High forward voltage drop. -High current capability. -The plastic material carries UL recognition 94V-0 Mechanical data -Case: JEDEC DO-27 molded plastic . -Polarity: Color band denotes cathode. -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C -Mounting position: Any -Weight: 0.04 ounces, 1.1 grams DO-27 1.0(25.40) Min. 0.220(5.60) DIA. 0.197(5.00) DIA. 0.375(9.5) 0.335(8.5) 1.0.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF3001-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UF3002-G
Manufacturer Comchip
File Size 66.50 KB
Description Ultra Fast Recovery Rectifiers
Datasheet download datasheet UF3002-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF3002 3 AMP ULTRA FAST SWITCHING RECTIFIER Fuji Electric
UF3002 3.0A ULTRA-FAST RECTIFIER Diodes Incorporated
UF3002 HIGH EFFICIENCY RECTIFIERS HY ELECTRONIC
UF3002 ULTRA FAST RECTIFIERS Lite-On
UF3002 ULTRAFAST EFFICIENT PLASTIC SILICON RECTIFIER Gulf Semiconductor

Other Datasheets by Comchip

Part Number Description
UF3001-G Ultra Fast Recovery Rectifiers
UF3003-G Ultra Fast Recovery Rectifiers
UF3004-G Ultra Fast Recovery Rectifiers
UF3005-G Ultra Fast Recovery Rectifiers
UF3006-G Ultra Fast Recovery Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

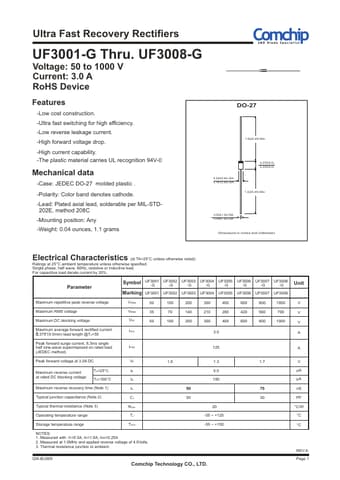

Ultra Fast Recovery Rectifiers UF3001-G Thru. UF3008-G Voltage: 50 to 1000 V Current: 3.0 A RoHS Device Features -Low cost construction. -Ultra fast switching for high efficiency. -Low reverse leakage current. -High forward voltage drop. -High current capability. -The plastic material carries UL recognition 94V-0 Mechanical data -Case: JEDEC DO-27 molded plastic . -Polarity: Color band denotes cathode. -Lead: Plated axial lead, solderable per MIL-STD202E, method 208C -Mounting position: Any -Weight: 0.04 ounces, 1.1 grams DO-27 1.0(25.40) Min. 0.220(5.60) DIA. 0.197(5.00) DIA. 0.375(9.5) 0.335(8.5) 1.0(25.40) Min. 0.052(1.30) DIA. 0.048(1.20) DIA.
