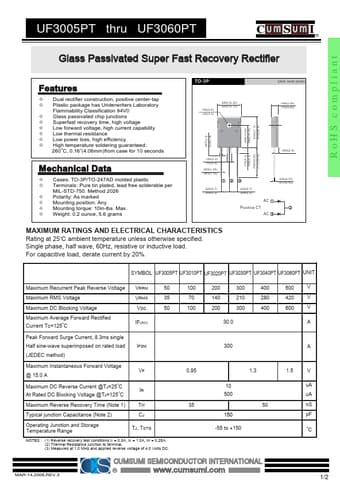

UF3005PT thru UF3060PT
Glass Passivated Super Fast Recovery Rectifier
TO-3P
Unit: inch (mm)
®
Features
Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classification 94V0 Glass passivated chip junctions Superfast recovery time, high voltage Low forward voltage, high current capability Low thermal resistance Low power loss, high efficiency High temperature soldering guaranteed: o 260 C, 0.16”(4.06mm)from case for 10 seconds
.640(16.25) .620(15.75) .142(3.6) .125(3.2) .199(5.05) .175(4.45)
.095(2.4) .126(3.2) .110(2.8) .050(1.25) .045(1.15)
.798(20.25) .777(19.75) .170(4.3) .145(3.7)
Mechanical Data
Cases: TO-3P/TO-247AD molded plastic Terminals: Pure tin plated, lead free solderable per MIL-STD-750.
UF3005PT Datasheet
