CT852 - Digital TMR Latch

Product Overview

📥 Download Datasheet

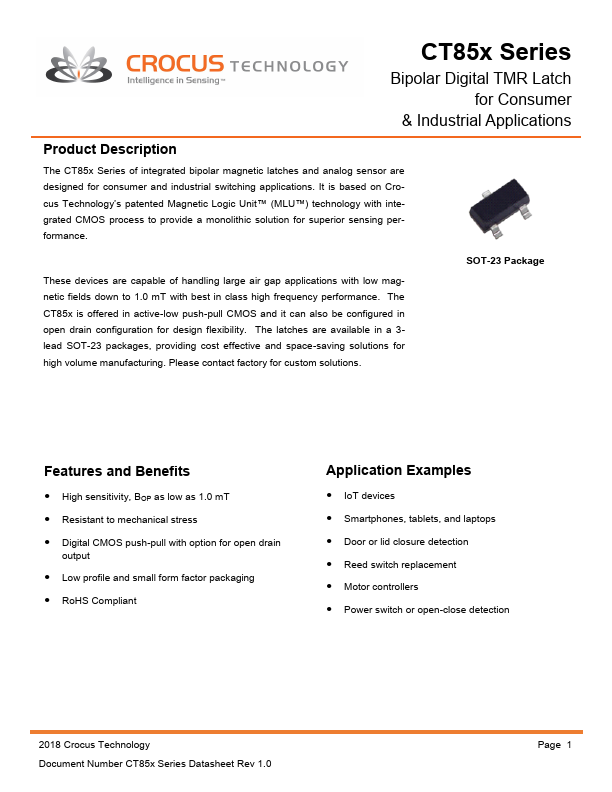

CT852 Digital TMR Latch by Crocus Technology - Datasheet Preview — Datasheet preview – CT852

Datasheet Details

Part number	CT852
Manufacturer	Crocus Technology
File Size	774.30 KB
Description	Digital TMR Latch
Datasheet	CT852 Datasheet
Additional preview pages of the CT852 datasheet.

Product details

Description

The CT85x Series of integrated bipolar magnetic latches and analog sensor are designed for consumer and industrial switching applications.

Features

High sensitivity, BOP as low as 1.0 mT.
Resistant to mechanical stress.
Digital CMOS push-pull with option for open drain output.
Low profile and small form factor packaging.
RoHS Compliant.
