BD142 - NPN Silicon Transistor

Comset Semiconductors

Datasheet Details

Part number	BD142
Manufacturer	Comset Semiconductors
File Size	123.48 KB
Description	NPN Silicon Transistor
Datasheet	BD142 Datasheet
Additional preview pages of the BD142 datasheet.

📁 Similar Datasheet

BD142 - SILICON POWER TRANSISTOR (SavantIC)
BD142 - NPN Transistor (INCHANGE)
BD140 - Transistor (STMicroelectronics)
BD140 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)
BD140 - Plastic Medium Power Silicon PNP Transistor (ON Semiconductor)
BD140 - Silicon PNP Transistor (Toshiba)
BD140 - PNP SILICON TRANSISTOR (UTC)
BD140 - PNP Transistor (INCHANGE)
BD140 - SILICON PNP Transistor (Toshiba)
BD140-10 - Plastic Medium Power Silicon PNP Transistor (Motorola Inc)

Other Datasheets by Comset Semiconductors

BD130 - NPN Silicon Transistor
BD131 - SILICON PLANAR EPITAXIAL POWER TRANSISTORS
BD132 - SILICON PLANAR EPITAXIAL POWER TRANSISTORS
BD181 - NPN Silicon Transistor
BD182 - NPN Silicon Transistor
BD183 - NPN Silicon Transistor

Full PDF Text Transcription

Click to expand full text

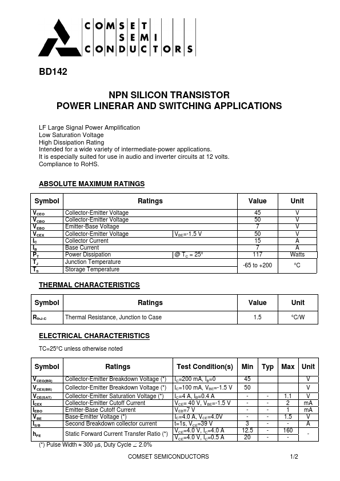

BD142 NPN SILICON TRANSISTOR POWER LINERAR AND SWITCHING APPLICATIONS LF Large Signal Power Amplification Low Saturation Voltage High Dissipation Rating Intended for a wide variety of intermediate-power applications. It is especially suited for use in audio and inverter circuits at 12 volts. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO VCBO VEBO VCEX IC IB PT TJ TS Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector-Emitter Voltage Collector Current Base Current Power Dissipation Junction Temperature Storage Temperature Ratings Value 45 50 7 50 15 7 117 -65 to +200 Unit V V V V A A Watts °C VBE=-1.5 V www.DataSheet.net/ @ TC = 25° THERMAL CHARACTERISTICS Symbol RthJ-C Ratings Thermal Resistance, Junction to Case Value 1.
