BD140G Datasheet PDF - ON Semiconductor Plastic Medium-Power Silicon PNP Transistors Specs

BD140G - Plastic Medium-Power Silicon PNP Transistors

This page provides the datasheet information for the BD140G, a member of the BD136G Plastic Medium-Power Silicon PNP Transistors family.

Datasheet Summary

Features

High DC Current Gain.
BD 136, 138, 140 are complementary with BD 135, 137, 139.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.

Datasheet Details

Part number	BD140G
Manufacturer	ON Semiconductor
File Size	171.74 KB
Description	Plastic Medium-Power Silicon PNP Transistors
Datasheet	BD140G Datasheet

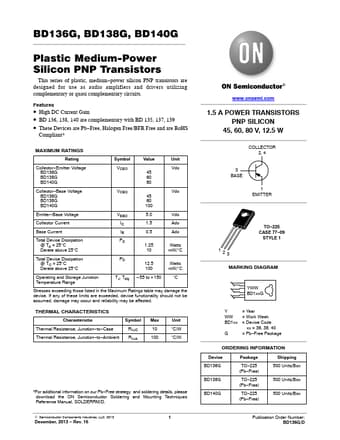

Additional preview pages of the BD140G datasheet.

📁 Similar Datasheet

BD140 - Transistor (STMicroelectronics)

BD140 - PNP Epitaxial Silicon Transistor (Fairchild Semiconductor)

BD140 - Silicon PNP Transistor (Toshiba)

BD140 - PNP SILICON TRANSISTOR (UTC)

BD140 - PNP Transistor (INCHANGE)

BD140 - SILICON PNP Transistor (Toshiba)

BD140-10 - Plastic Medium Power Silicon PNP Transistor (Motorola Inc)

BD14000EFV-C - Cell Balance LSI of 4 to 6 Series Power Storage Element Cells (Rohm)

BD141 - NPN Transistor (INCHANGE)

BD142 - SILICON POWER TRANSISTOR (SavantIC)

Full PDF Text Transcription

Click to expand full text

BD136G, BD138G, BD140G Plastic Medium-Power Silicon PNP Transistors This series of plastic, medium−power silicon PNP transistors are designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits. Features • High DC Current Gain • BD 136, 138, 140 are complementary with BD 135, 137, 139 • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* MAXIMUM RATINGS Rating Symbol Value Unit Collector−Emitter Voltage BD136G BD138G BD140G VCEO Vdc 45 60 80 Collector−Base Voltage BD136G BD138G BD140G VCBO Vdc 45 60 100 Emitter−Base Voltage Collector Current Base Current Total Device Dissipation @ TA = 25°C Derate above 25°C VEBO IC IB PD 5.0 Vdc 1.5 Adc 0.5 Adc 1.
