CDBQR0130R-HF - SMD Schottky Barrier Diode

Name: CDBQR0130R-HF
SKU: CDBQR0130R-HF-727017

Comchip

The CDBQR0130R-HF by Comchip is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBQR0130R-HF
Manufacturer	Comchip
File Size	249.90 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBQR0130R-HF_Comchip.pdf

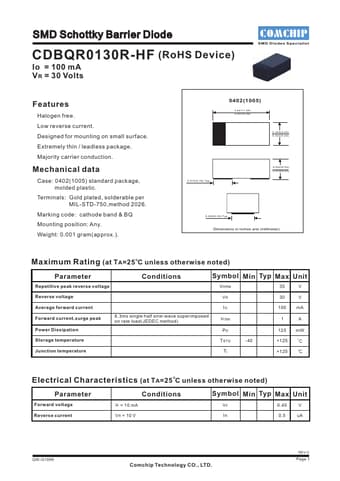

Additional preview pages of the CDBQR0130R-HF datasheet.

Halogen free. Low reverse current. Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.026(0.65) 0.022(0.55) Mechanical data Case: 0402(1005) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Marking code: cathode band & BQ Mounting position: Any. Weight: 0.001 gram(approx. ). http://www. DataSheet4U. net/ 0.022(0.55) 0.018(0.45) 0.012(0.30) Typ. 0.020(0.50) Typ. Dimensions in inches and (mil.
