CDBQR0130R Datasheet PDF (SMD Schottky Barrier Diode)

CDBQR0130R - SMD Schottky Barrier Diode

Features

Low reverse current . Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.026(0.65) 0.022(0.55) Mechanical data 0.022(0.55) Case: 0402(1005) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Marking code: cathode band & BQ Mounting position: Any Weight: 0.001 gram(approx. ). 0.018(0.45) 0.012(0.30) Typ. 0.020(0.50) Typ. Dimensions in inches and (millimeter) http://www. DataSheet4U. net/ Ma.

Datasheet Details

Part number	CDBQR0130R
Manufacturer	Comchip
File Size	249.67 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBQR0130R Datasheet

📁 Similar Datasheet

CDB0130QRM - Schottky Barrier Diode (Crownpo)

CDB0130QRM - Schottky Barrier Diode (msksemi)

CDB0230M - Chip Schottky Barrier Diode (MAYLOON)

CDB455C10 - High Performance Ceramic Discriminator (Murata)

CDB455C13A - High Performance Ceramic Discriminator (Murata)

CDB455C16 - High Performance Ceramic Discriminator (Murata)

CDB455C16 - FILTERS (Murata Electronics)

CDB455C21 - High Performance Ceramic Discriminator (Murata)

CDB455C24 - High Performance Ceramic Discriminator (Murata)

CDB455C27 - High Performance Ceramic Discriminator (Murata)

Full PDF Text Transcription

Click to expand full text

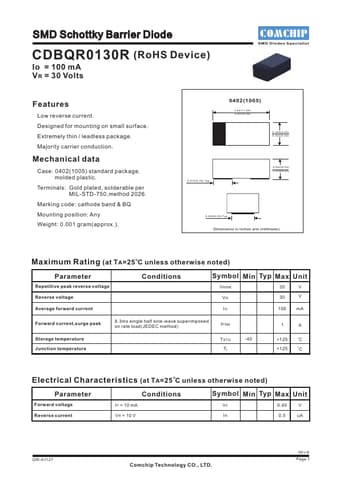

SMD Schottky Barrier Diode SMD Diodes Specialist CDBQR0130R (RoHS Device) Io = 100 mA V R = 30 Volts 0402(1005) 0.041(1.05) 0.037(0.95) Features Low reverse current . Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.026(0.65) 0.022(0.55) Mechanical data 0.022(0.55) Case: 0402(1005) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Marking code: cathode band & BQ Mounting position: Any Weight: 0.001 gram(approx.). 0.018(0.45) 0.012(0.30) Typ. 0.020(0.50) Typ. Dimensions in inches and (millimeter) http://www.DataSheet4U.
