CDBQR0140R - SMD Schottky Barrier Diode

Name: CDBQR0140R
SKU: CDBQR0140R-727020

Comchip

The CDBQR0140R by Comchip is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBQR0140R
Manufacturer	Comchip
File Size	243.80 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBQR0140R_Comchip.pdf

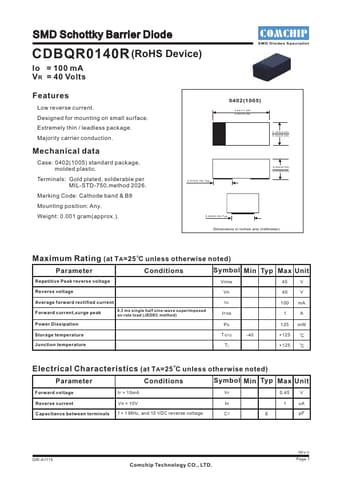

Additional preview pages of the CDBQR0140R datasheet.

Low reverse current. Designed for mounting on small surface. Extremely thin / leadless package. Majority carrier conduction. 0.026(0.65) 0.022(0.55) 0402(1005) 0.041(1.05) 0.037(0.95) Mechanical data Case: 0402(1005) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Marking Code: Cathode band & B9 Mounting position: Any. Weight: 0.001 gram(approx. ). 0.020(0.50) Typ. 0.012(0.30) Typ. 0.022(0.55) 0.018(0.45) Dimensions in inches and (millimeter).
