BC858AW-G, BC856AW-G Small Signal Transistor

BC858AW-G Description

Small Signal Transistor BC856AW-G Thru.BC858CW-G (PNP) RoHS Device .

BC858AW-G Applications

* -Power dissipation PCM: 0.15W (@TA=25°C) -Collector current ICM: -0.1A -Collector-base voltage VCBO: BC856W= -80V BC857W= -50V BC858W= -30V -Operating and storage junction temperature range: TJ, TSTG= -65 to +150°C SOT-323 0.053(1.35) 0.045(1.15) 0.039 (1.00) 0.035 (0.90) 0.087 (2.20) 0.079 (2.00

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC858AW-G, BC856AW-G. Please refer to the document for exact specifications by model.

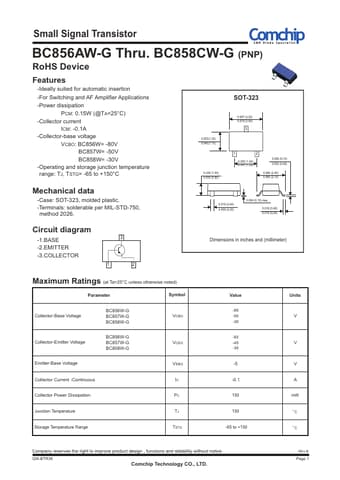

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC858AW-G, BC856AW-G
Manufacturer
Comchip
File Size
137.28 KB
Datasheet
BC856AW-G-Comchip.pdf
Description
Small Signal Transistor
Note
This datasheet PDF includes multiple part numbers: BC858AW-G, BC856AW-G.
Please refer to the document for exact specifications by model.
