CDBF0140R - SMD Schottky Barrier Diode

Comchip Technology

Datasheet Details

Part number	CDBF0140R
Manufacturer	Comchip Technology
File Size	154.06 KB
Description	SMD Schottky Barrier Diode

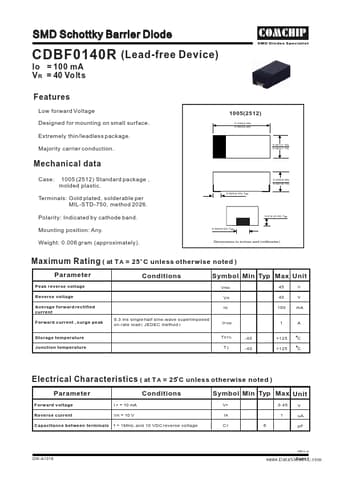

Datasheet	CDBF0140R_ComchipTechnology.pdf

Low forward Voltage (Lead-free Device) 1005(2512) 0.102(2.60) 0.095(2.40) Designed for mounting on small surface. Extremely thin/leadless package. Majority carrier conduction. 0.051(1.30) 0.043(1.10) Mechanical data Case: 1005 (2512) Standard package , molded plastic. 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) Terminals: Gold plated, solderable per MIL-STD-750, method 2026. Polarity: Indicated by cathode band. Mounting position: Any. Weight: 0.006 gram (approximately). 0.020(0.50) Typ. 0.012.
