CDBF001A - SMD Schottky Barrier Diode

Name: CDBF001A
SKU: CDBF001A-589567

Comchip Technology

The CDBF001A by Comchip Technology is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBF001A
Manufacturer	Comchip Technology
File Size	176.80 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBF001A_ComchipTechnology.pdf

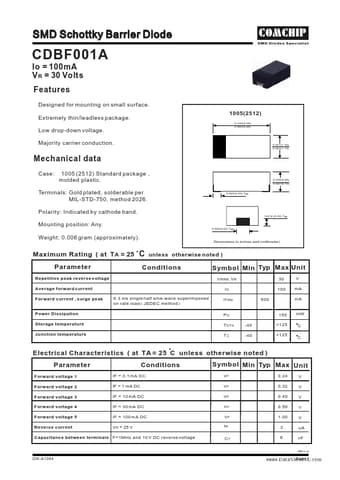

Additional preview pages of the CDBF001A datasheet.

Designed for mounting on small surface. Extremely thin/leadless package. Low drop-down voltage. Majority carrier conduction. Preliminary 1005(2512) 0.102(2.60) 0.095(2.40) 0.051(1.30) 0.043(1.10) Mechanical data Case: 1005 (2512) Standard package , molded plastic. 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) Terminals: Gold plated, solderable per MIL-STD-750, method 2026. Polarity: Indicated by cathode band. 0.012 (0.30) Typ. Mounting position: Any. 0.020(0.50) Typ. Weight: 0.006 gram (appro.
