CDBF00340 - SMD Schottky Barrier Diode

Comchip Technology

📥 Download Datasheet

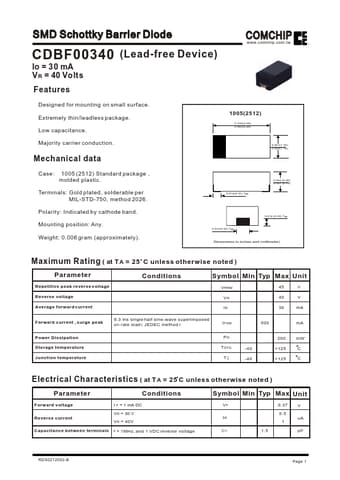

CDBF00340 Datasheet Preview — Preview of CDBF00340 PDF

datasheet Preview Page 2

Datasheet Details

Part number	CDBF00340
Manufacturer	Comchip Technology
File Size	64.36 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBF00340_ComchipTechnology.pdf

CDBF00340 Product details

Features

(Lead-free Device) Designed for mounting on small surface. Extremely thin/leadless package. Low capacitance. Majority carrier conduction. 0.051(1.30) 0.043(1.10) 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical data Case: 1005 (2512) Standard package , molded plastic. 0.014(0.35) Typ. 0.035 (0.90) 0.027 (0.70) Terminals: Gold plated, solderable per MIL-STD-750, method 2026. Polarity: Indicated by cathode band. 0.012 (0.30) Typ. Mounting position: Any. 0.014(0.35) Typ. Weight: 0.006 gram (ap.
