CMS9926A - Dual N-Channel Enhancement Mode MOSFET

Cmos

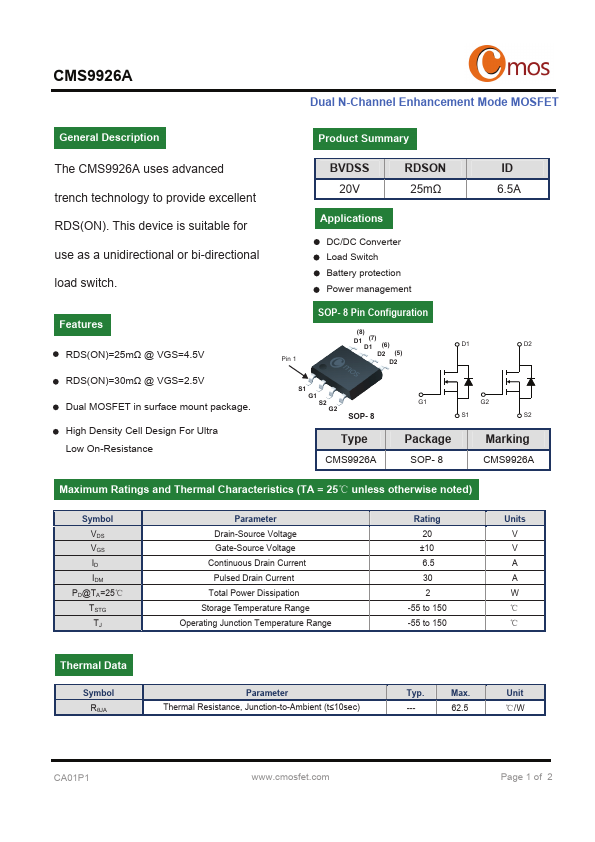

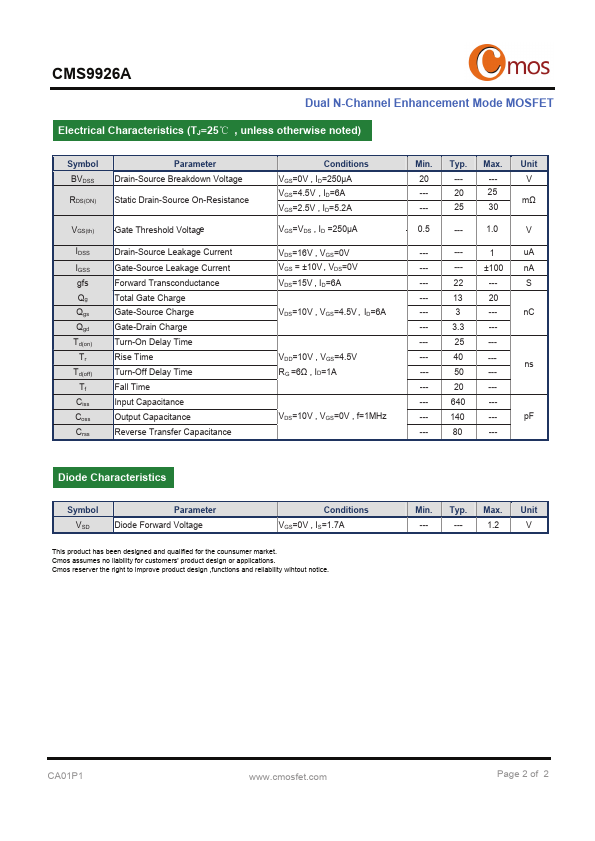

CMS9926A Datasheet Preview — Preview of CMS9926A PDF

Datasheet Details

Part number	CMS9926A
Manufacturer	Cmos
File Size	1.09 MB
Description	Dual N-Channel Enhancement Mode MOSFET
Datasheet	CMS9926A-Cmos.pdf

CMS9926A Product details

Description

Product Summary The CMS9926A uses advanced trench technology to provide excellent RDS(ON).This device is suitable for use as a unidirectional or bi-directional load switch.

Features

RDS(ON)=25mΩ @ VGS=4.5V RDS(ON)=30mΩ @ VGS=2.5V Dual MOSFET in surface mount package. High Density Cell Design For Ultra Low On-Resistance BVDSS 20V RDSON 25mΩ ID 6.5A.
