CMS-S035-080 - SCHOTTKY BARRIER DIODE

Champion

📥 Download Datasheet

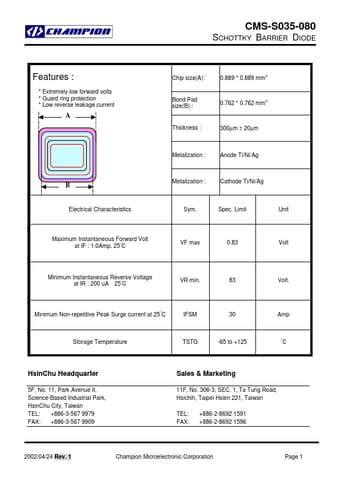

CMS-S035-080 Datasheet Preview — Preview of CMS-S035-080 PDF

Datasheet Details

Part number	CMS-S035-080
Manufacturer	Champion
File Size	17.08 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	CMS-S035-080-Champion.pdf

CMS-S035-080 Product details

Features

:.
Extremely low forward volts.
Guard ring protection.
Low reverse leakage current A B Electrical Characteristics Chip size(A): 0.889.
0.889 mm2 Bond Pad size(B) : 0.762.
0.762 mm2 Thickness : 300µm ± 20µm Metalization : Anode Ti/Ni/Ag Metalization : Cathode Ti/Ni/Ag Sym. Spec. Limit Unit Maximum Instantaneous Forward Volt at IF : 1.0Amp. 25°C VF max 0.83 Volt Minimum Instantaneous Reverse Voltage at IR : 200 uA 25°C VR min. 83 Minimum Non-repetitive P.
