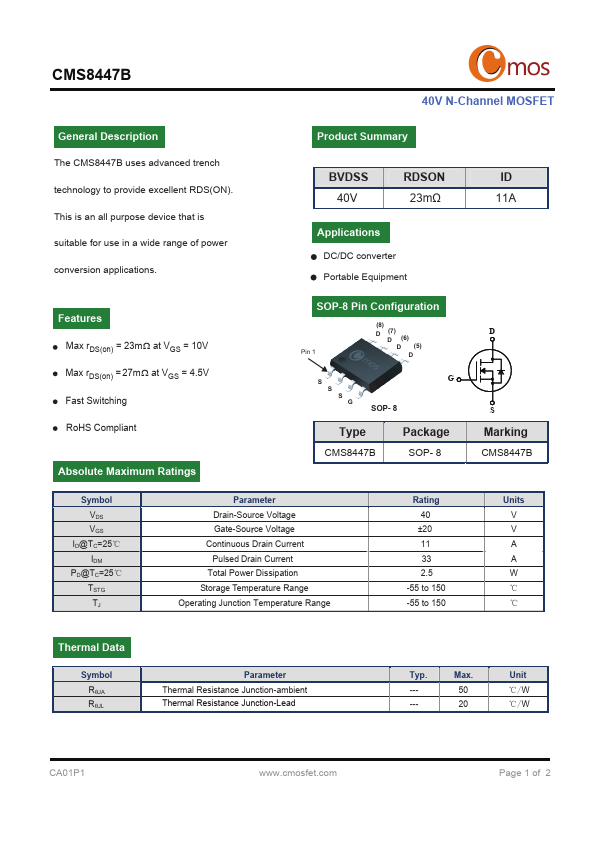

CMS8447B - 40V N-Channel MOSFET

Cmos

Datasheet Details

The CMS8447B uses advanced trench technology to provide excellent RDS(ON).

Max rDS(on) = 23mΩ at VGS = 10V Max rDS(on) = 27mΩ at VGS = 4.5V Fast Switching RoHS Compliant Absolute Maximum Ratings SOP-8 Pin Configuration Pin 1 (8) D (7) D (6) D (5) D S G S S G SOP- 8 Type CMS8447B Package SOP- 8 Symbol VDS VGS ID@TC=25℃ IDM PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Sou ce Voltage Continuous Drain Current Pulsed Drain Current Total Power Dissipation Storage Temperature Range Operating Junction Temperature Range Rating 40 ±20 11 33 2.5 -55 to.
