CA-IS3020 - Low-Power Bidirectional I2C Isolators

Chipanalog

📥 Download Datasheet

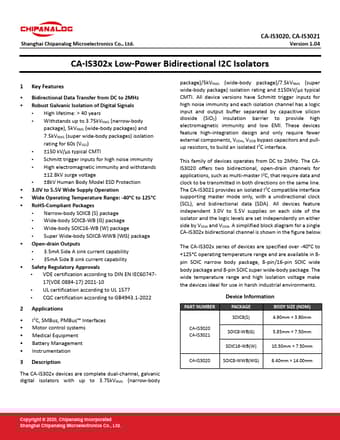

CA-IS3020 Datasheet Preview — Preview of CA-IS3020 PDF

Datasheet Details

Part number	CA-IS3020
Manufacturer	Chipanalog
File Size	1.07 MB
Description	Low-Power Bidirectional I2C Isolators
Datasheet	CA-IS3020-Chipanalog.pdf

CA-IS3020 Product details

Description

The CA-IS302x devices are complete dual-channel, galvanic digital isolators with up to 3.75kVRMS (narrow-body package)/5kVRMS (wide-body package)/7.5kVRMS (super wide-body package) isolation rating and ±150kV/μs typical CMTI.All device versions have Schmitt trigger inputs for high noise immunity and each isolation channel has a logic input and output buffer separated by capacitive silicon dioxide (SiO2) insulation barrier to provide high electromagnetic immunity and low EMI.These devices feat

Features

Bidirectional Data Transfer from DC to 2MHz.
Robust Galvanic Isolation of Digital Signals.
High lifetime: > 40 years.
Withstands up to 3.75kVRMS (narrow-body package), 5kVRMS (wide-body packages) and 7.5kVRMS (super wide-body packages) isolation rating for 60s (VISO).
±150 kV/μs typical CMTI.
Schmitt trigger inputs for high noise immunity.
High electromagnetic immunity and withstands ±12.8kV surge voltage.
±8kV Human Body Model ESD Protection.
