CA-IS3050CG - CAN Transceivers

Chipanalog

📥 Download Datasheet

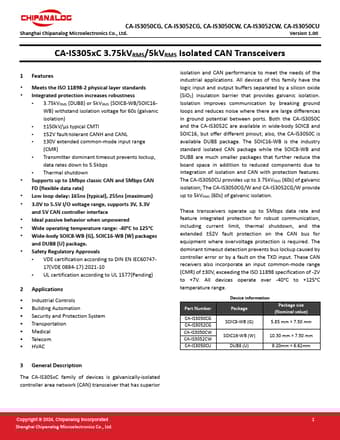

CA-IS3050CG Datasheet Preview — Preview of CA-IS3050CG PDF

Datasheet Details

Part number	CA-IS3050CG
Manufacturer	Chipanalog
File Size	1.19 MB
Description	CAN Transceivers
Datasheet	CA-IS3050CG-Chipanalog.pdf

CA-IS3050CG Product details

Description

The CA-IS305xC family of devices is galvanically-isolated controller area network (CAN) transceiver that has superior Copyright © 2024, Chipanalog Incorporated 1 Shanghai Chipanalog Microelectronics Co., Ltd.CA-IS3050CG, CA-IS3052CG, CA-IS3050CW, CA-IS3052CW, CA-IS3050CU Version 1.00 Shanghai Chipanalog Microelectronics Co., Ltd.Simplified functional block diagram VCC1 VCC2 TXD CANH Isolation RXD CANL Logic Side GND1 Bus Side GND2 4 Ordering Information Part # CA-IS3050CG CA-

Features

Meets the ISO 11898-2 physical layer standards.
Integrated protection increases robustness.
3.75kVRMS (DUB8) or 5kVRMS (SOIC8-WB/SOIC16WB) withstand isolation voltage for 60s (galvanic isolation).
±150kV/μs typical CMTI.
±52V fault-tolerant CANH and CANL.
±30V extended common-mode input range (CMR).
Transmitter dominant timeout prevents lockup, data rates down to 5.5kbps.
Thermal shutdown.
Supports up to 1Mbps classic CAN and 5Mbps CAN FD.
