CA-IS3050G - Isolated CAN Transceivers

Chipanalog

📥 Download Datasheet

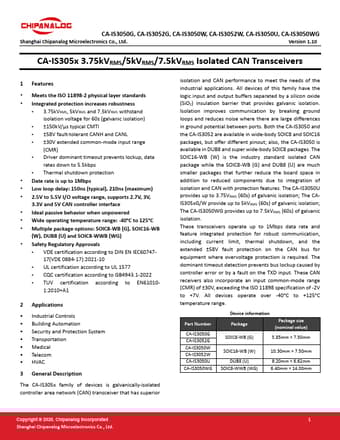

CA-IS3050G Datasheet Preview — Preview of CA-IS3050G PDF

Datasheet Details

Part number	CA-IS3050G
Manufacturer	Chipanalog
File Size	1.37 MB
Description	Isolated CAN Transceivers
Datasheet	CA-IS3050G-Chipanalog.pdf

CA-IS3050G Product details

Description

The CA-IS305x family of devices is galvanically-isolated controller area network (CAN) transceiver that has superior isolation and CAN performance to meet the needs of the industrial applications.All devices of this family have the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides galvanic isolation.Isolation improves communication by breaking ground loops and reduces noise where there are large differences in ground potential between ports.B

Features

Meets the ISO 11898-2 physical layer standards.
Integrated protection increases robustness.
3.75kVRMS, 5kVRMS and 7.5kVRMS withstand isolation voltage for 60s (galvanic isolation).
±150kV/μs typical CMTI.
±58V fault-tolerant CANH and CANL.
±30V extended common-mode input range (CMR).
Driver dominant timeout prevents lockup, data rates down to 5.5kbps.
Thermal shutdown protection.
Date rate is up to 1Mbps.
Low loop delay: 150ns (t.
