CS464 - Single Coil Predriver

Cherry Semiconductor Corporation

Datasheet Details

Part number	CS464
Manufacturer	Cherry Semiconductor Corporation
File Size	162.31 KB
Description	Single Coil Predriver
Datasheet	CS464_CherrySemiconductorCorporation.pdf

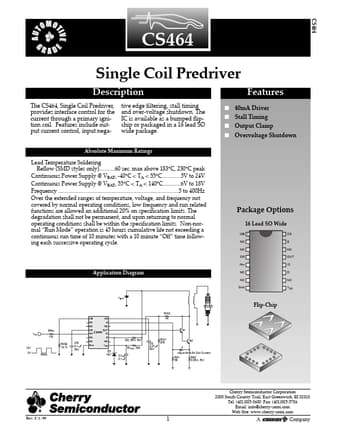

The CS464, Single Coil Predriver, provides interface control for the current through a primary ignition coil.

include output current control, input negative edge filtering, stall timing and over-voltage shutdown. The IC is available as a bumped flipchip or packaged in a 16 lead SO wide package. Features s 40mA Driver s Stall Timing s Output Clamp s Overvoltage Shutdown Absolute Maximum Ratings Lead Temperature Soldering Reflow (SMD styles only)60 sec. max above 183¡C, 230¡C peak Continuous Power Supply @ VBAT, -40¡C < TA < 55¡C 5V to 24V Continuous Power Supply @ VBAT, 55¡C < TA < 140¡C6V to 18V Freq.
