CS4161 - 85mA Dual H-Bridge Odometer Driver

Name: CS4161
SKU: CS4161-100502

Cherry Semiconductor Corporation

📥 Download Datasheet

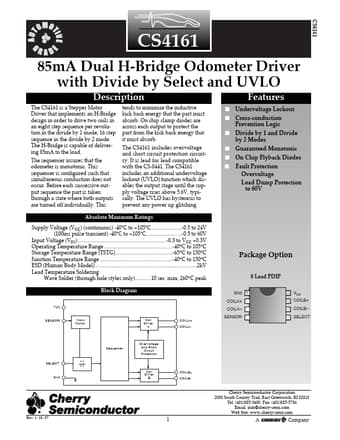

CS4161 Datasheet Preview — Preview of CS4161 PDF

Datasheet Details

Part number	CS4161
Manufacturer	Cherry Semiconductor Corporation
File Size	149.50 KB
Description	85mA Dual H-Bridge Odometer Driver
Datasheet	CS4161_CherrySemiconductorCorporation.pdf

CS4161 Product details

Description

The CS4161 is a Stepper Motor Driver that implements an H-Bridge design in order to drive two coils in an eight step sequence per revolution in the divide by 1 mode; 16 step sequence in the divide by 2 mode.

Features

s Undervoltage Lockout s Cross-conduction Prevention Logic s Divide by 1 and Divide by 2 Modes s Guaranteed Monotonic s On Chip Flyback Diodes s Fault Protection Overvoltage Load Dump Protection to 60V Absolute Maximum Ratings Supply Voltage (VCC) (continuous) -40ûC to +105ûC -0.5 to 24V (100ms pulse transient) -40ûC to +105ûC-0.5 to 60V Input Voltage (VIN) -0.3 to VCC +0.3V Operating Temperature Range -40¡C to 105¡C Storage Temperature Range (TSTG) -65¡C to 150¡C Junction Temperature Range -40.
