CS4614 - PCI Audio Accelerator

Cirrus Logic

📥 Download Datasheet

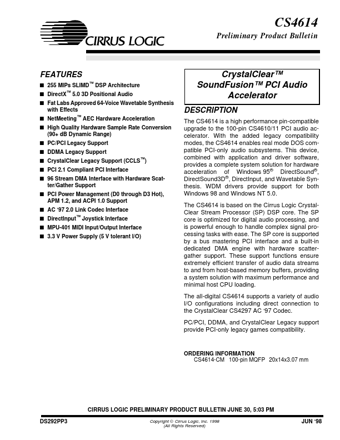

CS4614 Datasheet Preview — Preview of CS4614 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CS4614
Manufacturer	Cirrus Logic
File Size	201.13 KB
Description	PCI Audio Accelerator
Datasheet	CS4614-CirrusLogic.pdf

CS4614 Product details

Description

The CS4614 is a high performance pin-compatible upgrade to the 100-pin CS4610/11 PCI audio accelerator.

Features

s 255 MIPs SLIMD™ DSP Architecture s DirectX™ 5.0 3D Positional Audio s Fat Labs Approved 64-Voice Wavetable Synthesis with Effects s NetMeeting™ AEC Hardware Acceleration s High Quality Hardware Sample Rate Conversion (90+ dB Dynamic Range) s PC/PCI Legacy Support s DDMA Legacy Support s CrystalClear Legacy Support (CCLS™) s PCI 2.1 Compliant PCI Interface s 96 Stream DMA Interface with Hardware Scat- ter/Gather Support s PCI Power Management (D0 through D3 Hot), APM 1.2, and ACPI 1.0 Support s.
