K17255B 5V Voltage Controlled Crystal Oscillators

K17255B Description

www.DataSheet4U.com K17255B Series 5V Voltage Controlled Crystal Oscillators ΠAPPLICATIONS SONET, Digital Cross Connect Equipment; Clock Recovery; F.
-55°C to +125°C; Air-to-Air; 100 cycles; 10 min.

K17255B Applications

* SONET, Digital Cross Connect Equipment; Clock Recovery; Fiber Optic l Transmission Equipment; Phased Locked Loops (PLL’s) Œ 155.520MHz Œ 0.5V to 4.5V Control Voltage Œ ±20ppm Stability Œ Complementary PECL 10KH Output Œ -40°C to 85°C Operating Temperature ax. mM 8m , 0 2 ax. mM 2m , 3 1 A HZ 255B M

📥 Download Datasheet

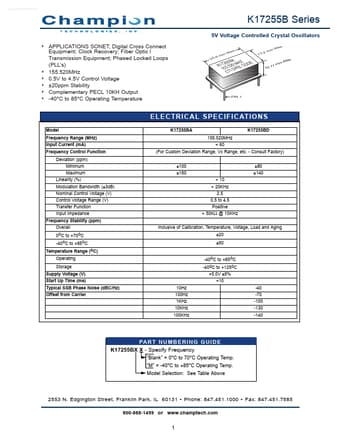

Preview of K17255B PDF
datasheet Preview Page 2

Datasheet Details

Part number
K17255B
Manufacturer
Champion
File Size
450.45 KB
Datasheet
K17255B_Champion.pdf
Description
5V Voltage Controlled Crystal Oscillators
