K1723 N-Channel MOSFET Transistor

K1723 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 2SK1723 .
Drain Current ID=12A@ TC=25℃. Drain Source Voltage : VDSS= 600V(Min). Fast Switching Speed APPLICATIONS. Power supplies, converters.

K1723 Applications

* Power supplies, converters and power motor controls ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 12 A Ptot Total Dissipation@TC=25℃ 150 W Tj Max. Operating Juncti

📥 Download Datasheet

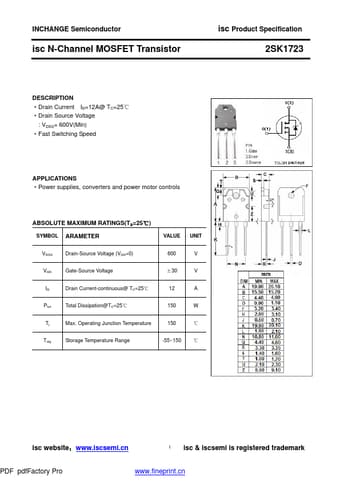

Preview of K1723 PDF
datasheet Preview Page 2

Datasheet Details

Part number
K1723
Manufacturer
INCHANGE
File Size
60.23 KB
Datasheet
K1723-INCHANGE.pdf
Description
N-Channel MOSFET Transistor
