K1700A 5V Temperature Compensated Voltage Controlled Crystal Oscillators

K1700A Description

www.DataSheet4U.com K1700A Series 5V Temperature Compensated Voltage Controlled Crystal Oscillators ! Applications: Phase Lock Loops Clocking “Sync” .
-55°C to +125°C; Air-to-Air; 100 cycles; 10 min.

K1700A Applications

* Phase Lock Loops Clocking “Sync” to NTSC Video Standards; Reference Signal; Signal Tracking; ATM ! 2.0 to 35.0 MHz Frequency Range ! ±10ppm Frequency Stability - (0oC to 70oC) K1710 ! ±20ppm Frequency Stability - (-40oC to 85oC) K1720 ! -40°C to 85°C Operating Temperature ! TTL/CMOS Compatible ! Me

📥 Download Datasheet

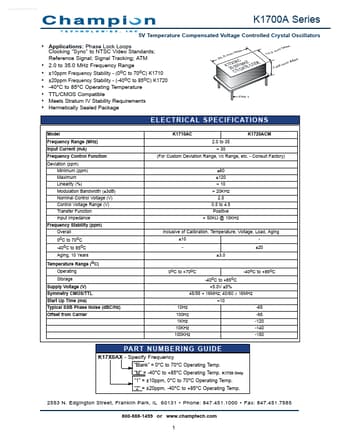

Preview of K1700A PDF
datasheet Preview Page 2

Datasheet Details

Part number
K1700A
Manufacturer
Champion
File Size
133.04 KB
Datasheet
K1700A_Champion.pdf
Description
5V Temperature Compensated Voltage Controlled Crystal Oscillators
