CM1214A - 1 and 2 Channel PicoGuardTM AC Signal ESD Protector

California Micro Devices

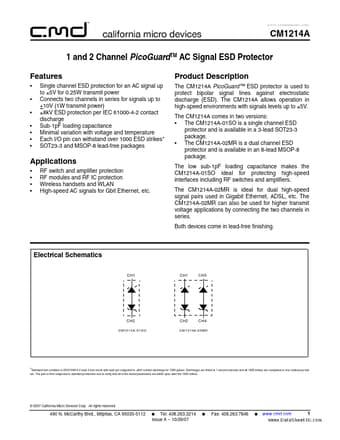

CM1214A Datasheet Preview — Preview of CM1214A PDF

Datasheet Details

Part number	CM1214A
Manufacturer	California Micro Devices
File Size	333.71 KB
Description	1 and 2 Channel PicoGuardTM AC Signal ESD Protector
Datasheet	CM1214A_CaliforniaMicroDevices.pdf

CM1214A Product details

Description

The CM1214A PicoGuard™ ESD protector is used to protect bipolar signal lines against electrostatic discharge (ESD). The CM1214A-01SO is a single channel ESD protector and is available in a 3-lead SOT23-3 package. The CM1214A-02MR is a dual channel ESD protector and is available in an 8-lead MSOP-8 package.

Features

Single channel ESD protection for an AC signal up to ±5V for 0.25W transmit power Connects two channels in series for signals up to +10V (1W transmit power) ±8kV ESD protection per IEC 61000-4-2 contact discharge Sub-1pF loading capacitance Minimal variation with voltage and temperature Each I/O pin can withstand over 1000 ESD strikes.
SOT23-3 and MSOP-8 lead-free packages Product.
