CM1213A - 2- and 4-Channel Low Capacitance ESD Protection Arrays

Description

minimal capacitive loading.

capacitive loading.

Features

  • One, Two, and Four Channels of ESD Protection Note: For 6 and 8.
  • channel Devices, See the CM1213 Data Sheet.
  • Provides ESD Protection to IEC61000.
  • 4.
  • 2 Level 4  12 kV Contact Discharge.
  • Low Channel Input Capacitance of 0.85 pF Typical.
  • Minimal Capacitance Change with Temperature and Voltage.
  • Channel Input Capacitance Matching of 0.02 pF Typical is Ideal for Differential Dignals.
  • Each CH (I/O) Pin Can Withstand Over 1000 ESD Strikes.

📥 Download Datasheet

Datasheet Details

Part number CM1213A
Manufacturer onsemi
File Size 840.24 KB
Description 2- and 4-Channel Low Capacitance ESD Protection Arrays
Datasheet download datasheet CM1213A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CM1213A 2- and 4-Channel Low Capacitance ESD Protection Arrays California Micro Devices
CM1213 Low Capacitance ESD Protection Arrays California Micro Devices
CM1210 CMOS Nonvolatile Controller California Micro Devices Corp
CM1214 1 and 2 Channel PicoGuard AC Signal ESD Protector California Micro Devices
CM1214A 1 and 2 Channel PicoGuardTM AC Signal ESD Protector California Micro Devices

Other Datasheets by onsemi

Part Number Description
CM1214 1 and 2-Channel AC Signal ESD Protector
CM1214A 1- and 2-Channel PicoGuard AC Signal ESD Protector
CM1215 Low Capacitance ESD Arrays
CM1216 6 and 8-Channel Low Capacitance ESD Arrays
CM1218 Low Capacitance Transient Voltage Suppressors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

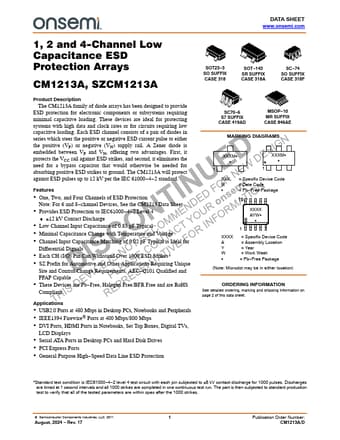

DATA SHEET www.onsemi.com 1, 2 and 4-Channel Low Capacitance ESD Protection Arrays CM1213A, SZCM1213A SOT23−3 SO SUFFIX CASE 318 SOT−143 SR SUFFIX CASE 318A SC−74 SO SUFFIX CASE 318F Product Description The CM1213A family of diode arrays has been designed to provide ESD protection for electronic components or subsystems requiring minimal capacitive loading. These devices are ideal for protecting systems with high data and clock rates or for circuits requiring low capacitive loading. Each ESD channel consists of a pair of diodes in series which steer the positive or negative ESD current pulse to either the positive (VP) or negative (VN) supply rail. A Zener diode is embedded between VP and VN, offering two advantages.
