CM1214 1 and 2 Channel PicoGuard AC Signal ESD Protector

CM1214 Description

PRELIMINARY www.DataSheet4U.com CM1214 1 and 2 Channel PicoGuardTM AC Signal ESD Protector .
The CM1214 PicoGuardTM ESD protector is used to protect bipolar signal lines against electrostatic discharge (ESD).

CM1214 Features

* Single channel ESD protection for an AC signal up to ±5V for 0.25W transmit power Connect two channels in series for signals up to +10V (1W transmit power) ±8kV ESD protection per IEC 61000-4-2 contact discharge Sub-1pF

CM1214 Applications

* by connecting the two channels in series. The CM1214-01DF/DE and the CM1214-01ST/SO are single channel ESD protectors available in a 3-lead DFN-3 and SOT23-3 packages respectively. The CM1214-01DF/DE is housed in a very small form factor DFN package that provides up to 20% and 32% board space saving

📥 Download Datasheet

Preview of CM1214 PDF

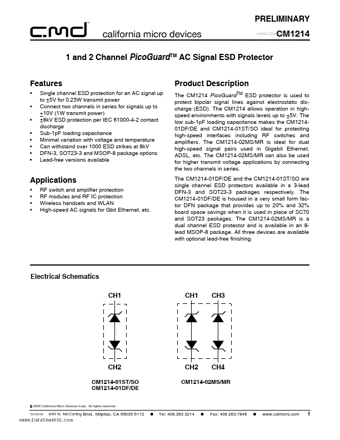

datasheet Preview Page 2 datasheet Preview Page 3
