BAW56N3 - Double diode

BAW56N3 Description

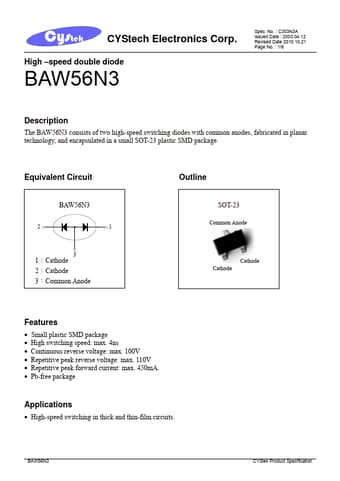

CYStech Electronics Corp.High *speed double diode BAW56N3 Spec.No.: C303N3A Issued Date : 2003.04.12 Revised Date 2010.10.21 Page No.: 1/.
The BAW56N3 consists of two high-speed switching diodes with common anodes, fabricated in planar technology, and encapsulated in a small SOT-23 plasti.

BAW56N3 Features

* Small plastic SMD package
* High switching speed: max. 4ns
* Continuous reverse voltage: max. 100V
* Repetitive peak reverse voltage: max. 110V
* Repetitive peak forward current: max. 450mA.

BAW56N3 Applications

* High-speed switching in thick and thin-film circuits. BAW56N3 CYStek Product Specification CYStech Electronics Corp. Absolute Maximum Ratings @TA=25℃ Spec. No. : C303N3A Issued Date : 2003.04.12 Revised Date 2010.10.21 Page No. : 2/6 Parameters Repetitive peak reverse voltage Continuo
