EF20C06E3 - 20Amp. Glass Passivated Efficient Fast Recovery Rectifiers

Product Overview

CYStech Electronics

Part number	EF20C06E3
Manufacturer	CYStech Electronics
File Size	252.49 KB
Description	20Amp. Glass Passivated Efficient Fast Recovery Rectifiers
Datasheet	EF20C06E3 Datasheet
Note	This datasheet PDF includes multiple part numbers: EF20C06E3, EF20CXXE3. Please refer to the document for exact specifications by model.

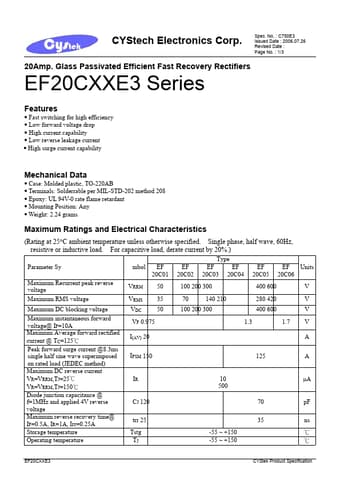

Additional preview pages of the EF20C06E3 datasheet.

Mechanical Data.
Case: Molded plastic, TO-220AB.
Terminals: Solderrable per MIL-STD-202 method 208.
Epoxy: UL 94V-0 rate flame retardant.
Mounting Position: Any.
Weight: 2.24 grams Maximum Ratings and Electrical Characteristics (Rating at 25°C ambient temperature unless otherwise specified. resistive or inductive load. Single phase, half wave, 60Hz, For capacitive load, derate current by 20%. ) mbol VRRM VRMS VDC VF 0.975 I(AV) 20 IFSM 150 125 EF.
